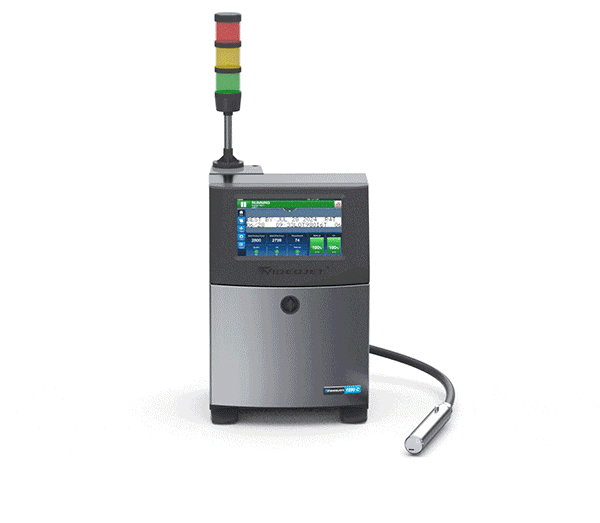

Videojet 1580 C soft-pigmented contrast printer
Continuous inkjet printers
- The 1580 C is a dedicated soft-pigmented contrast printer that performs and behaves like a standard dye-based printer
- It delivers industry-first performance using soft-pigmented contrast inks, providing superior uptime and enabling you to achieve your marking and coding objectives both now and in the future
- The 1580 C has similar maintenance requirements and running time to a standard CIJ printer, due to design innovations in our hydraulics, printhead, and cartridge
- Based on our tried and trusted Videojet 1580 inkjet printer platform, the
1580 C has a similar design, with many of the same great features - The 1580 C is one of the simplest CIJ printers to operate and maintain, and was designed to print consistently high-quality codes with strong contrast
Contact us for New Equipment Sales: +65 3138 2040
Specs
| Value | |
| Printheads | 1 |
| Inks | Soft-pigmented |
| Maximum Lines of Print per Printhead | 5 |
| Maximum Line Speed (1) | 271 m/min (889 ft/min) |
| Environmental Protection | IP55 (Dust Kit IP65 #) |
| Umbilical Length | 3 m (9.8 ft) optional 6 m (19.6 ft) |
| Message Storage Capability | More than 250 complex messages |
| Smart Cartridge™ | Included |
| Plug and Play Printhead Modules | Included |
| USB | Included |
| Communications | Ethernet LAN™; Built-in Wi-Fi; optional Cellular connectivity |
| Linear and 2D Bar Codes | Included |
| Positive Air / CleanFlow™ | Optional |
| Display (User Interface) | SIMPLICiTY™ based 10 inch color touchscreen |
Benefits
Behaves like a standard CIJ printer
- The 1580 C has the same cleaning cycles and preventive maintenance requirements as a dye-based printer, and uses similar filters as the rest of the Videojet CIJ range
- Planned maintenance can take place every 5000 hours – using soft-pigmented inks doesn’t require more frequent maintenance
- A new, patented cartridge design helps reduce common problems such as pigment settling, which can create blockage and lead to printhead clogging
- A new design helps the printhead to stay clean longer, reducing production downtime and allowing for longer time between cleanings
Maintains code quality and contrast
- The 1580 C was specifically designed to print codes with consistent quality and contrast that remain readable and don’t fade over time
- With a new formula that reduces the settling rate, our soft-pigmented inks have been designed to deliver more uptime
- The conical mixer tank design improves ink recirculation, reducing pigment settling
- Videojet Dynamic Calibration automatically maintains superior print quality, for optimum uptime even under changing environmental conditions
Easy to maintain
- The Videojet SIMPLICiTY™ user interface delivers code assurance out of the box, with error-proofing rules that define editable fields, permissible data types, date range restrictions, and more, greatly reducing printer interactions and potential user errors
- The Videojet OPTIMiZE tool allows the 1580 C to assess a variety of printer parameters, helping to manage the ink and make-up usage, calculate future fluids forecast, and determine power wastage
- With Rapid Recover, an onboard advanced automated troubleshooting solution that quickly determines if a printer failure can be easily repaired or if a spare printer needs to be deployed, enables line recovery within 20 minutes
- When combined with VideojetConnect™ Remote Service, Rapid Recover can backup and restore via cloud in case of a swap
Future-proof connectivity
- The 1580 C is ready to meet modern printing challenges and whatever the future needs of Industry 4.0 are likely to demand
- An integrated Wi-Fi antenna allows the printer to connect to an internal network and have greater mobility, with no need for LAN cables or hard wiring
- Web Server provides you the possibility to interact with the printer remotely, through any browser located on the same network to change settings, start and stop the jet, create and edit jobs, and much more
Applications
All
Corrugate – Direct Marking
Glass
Plastic
Rubber
Wire and Cable
Flexible Film
Metal
Printing and Labeling on Corrugate
Viewimage gallery
Viewweb pagePrinting on Glass Bottles and Containers
Viewimage gallery
Viewweb pagePrinting on Plastic rigid containers
Viewimage gallery
Viewweb pagePrinting on Plastic and Rubber parts
Viewimage gallery
Viewweb pagePrinting on Wire Cable Pipe
Viewimage gallery
Viewweb pagePrinting on Flexible Films and Foils
Viewimage gallery
Viewweb pagePrinting on Metal and Aluminum Cans
Viewimage gallery
Viewweb pagePrinting on Plastic rigid containers
Viewimage gallery
Viewweb pageResources
Documents
1580 C Brochure
1580 C Spec Sheet
Videos
Related Products
| Videojet 1280 Continuous Inkjet  | Videojet 1580 + Continuous Inkjet  | Videojet 1580 C Continuous Inkjet  | Videojet 1880 Continuous Inkjet  | |
| Max Line Speed | 162 m/min (533 ft/min) | 278 m/min (914 ft/min) | 271 m/min (889 ft/min) | 334 m/min (1,097 ft/min) |
| Max Print Height | 10mm | 10mm | 10mm | 10mm |
| Code Type |      | | | |
| Line Location | Product Marking, Case Marking | Product Marking, Case Marking | Product Marking, Case Marking | Product Marking, Case Marking |
| Applications | Flexible Film, Foils, Labels Glass Masonry Corrugate – Direct Marking Metal Paperboard Plastic – PET Plastic – HDPE Plastic – General Rubber Textile Wood and Lumber | Flexible Film, Foils, Labels Glass Masonry Corrugate – Direct Marking Metal Paperboard Plastic – PET Plastic – HDPE Plastic – General Rubber Textile Wood and Lumber | Flexible Film, Foils, Labels Glass Masonry Corrugate – Direct Marking Metal Paperboard Plastic – PET Plastic – HDPE Plastic – General Rubber Textile Wood and Lumber | Flexible Film, Foils, Labels Glass Masonry Corrugate – Direct Marking Metal Paperboard Plastic – PET Plastic – HDPE Plastic – General Rubber Textile Wood and Lumber |
